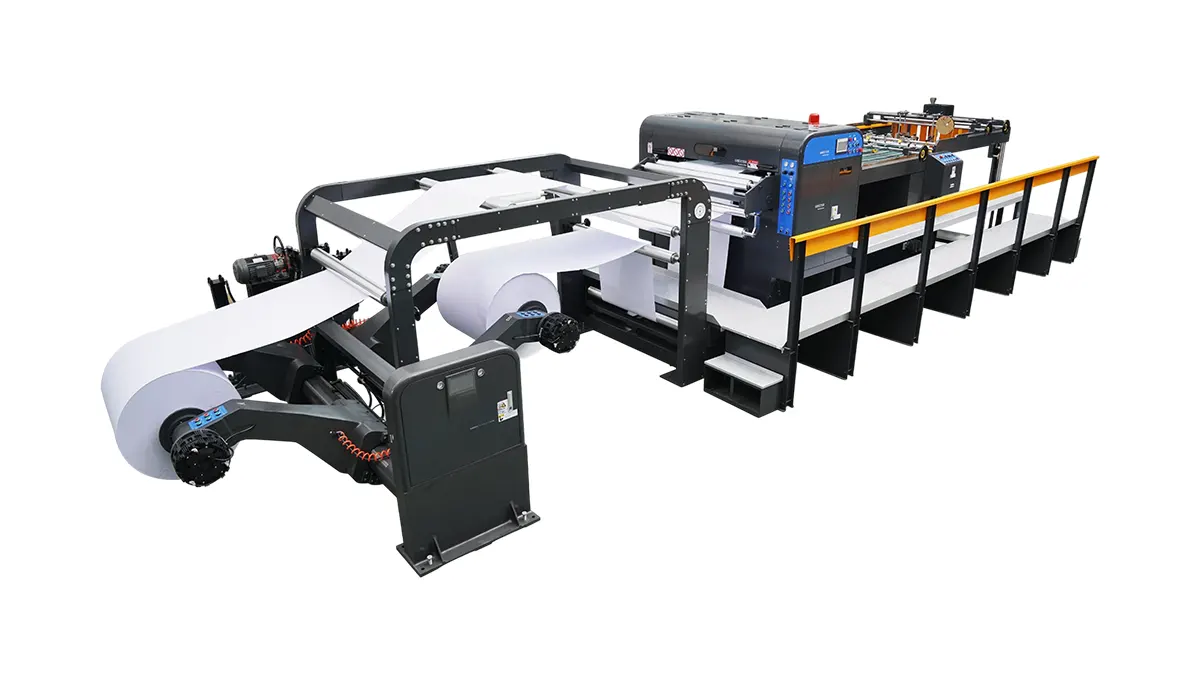

Dual Rotary Sheeter
The dual rotary sheeter cuts through sheets with precision (less than 0.5 mm deviation). The clean cutting leaves no marks, creases or rough edges, which ensures smooth downstream printing without the need for re-cutting. The dual rotary sheeter can be applied to corrugated boards, kraft paper, packing paper, etc.
Watch Video
Request a Quote
Technical Specifications
| Paper weight | 200-1000gsm |
| Precision | ±0.5mm |
| Max. speed | 300 sheets/min |
| Max. cutting speed | 300 m/min |
| Sheet length | 450-1650mm |
| Max. reel diameter | 1800mm |
| Stack height | 1300mm |
| Sheet width | 1400mm/1700mm/1900mm |
| Weight | 15000kg/17000kg/18400kg |
| Power | Approx. 23kW |
Features
- The Europe-developed dual rotary cutting system helps precision level reach below 0.5mm and ensures stable operation.

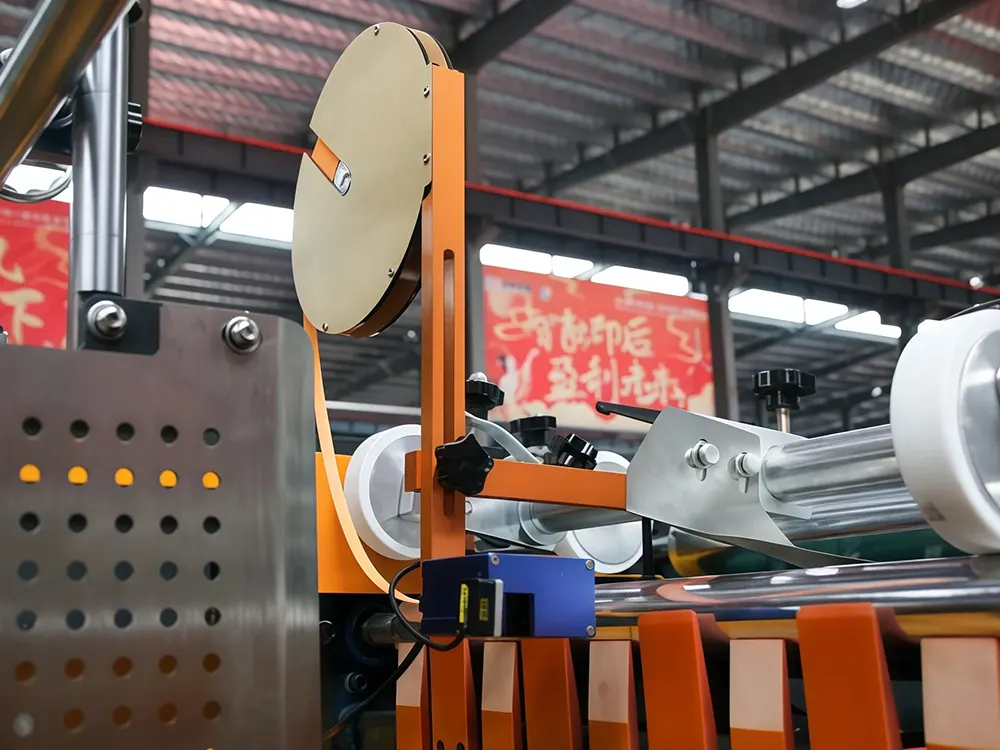

- The EPC system automatically adjusts cutting position, which increases precision.
- Our dual rotary sheeters, equipped with a heavy-duty air blasters and Y-shaped duct pipes, effectively reject trims from the operation line.
- The UK-made dual rotary cutter is made of quality materials, which reduces noise and extend service life.

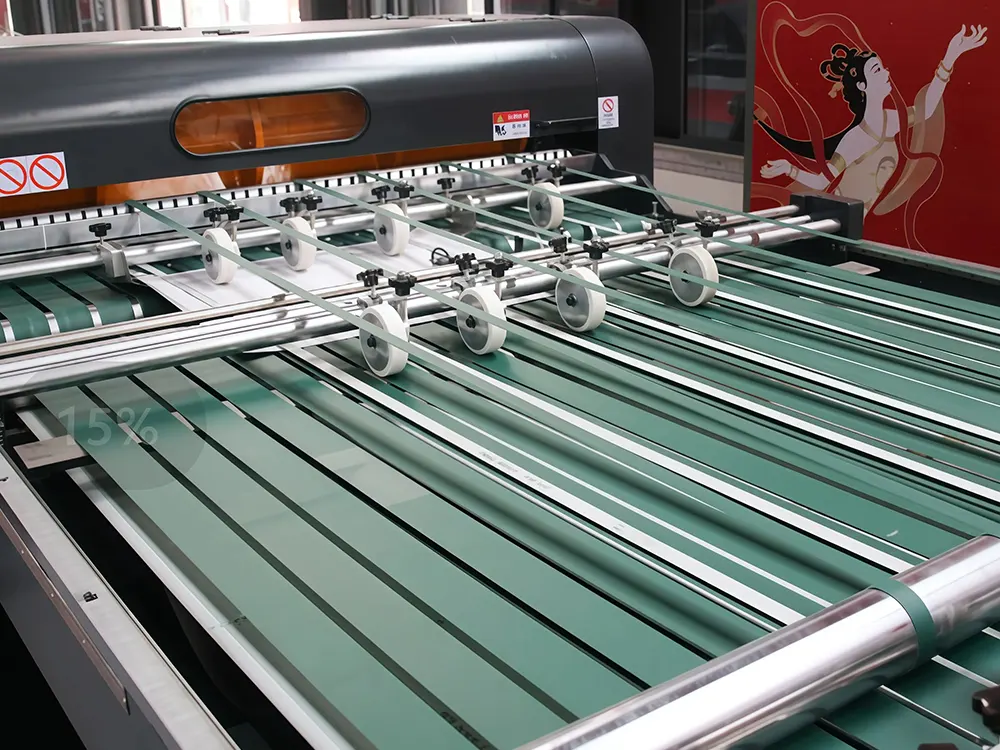

- The conveyor unit employs multi-stage horizontal conveying system for multiple purposes, including dividing, conveying and stacking.
Standard Configurations

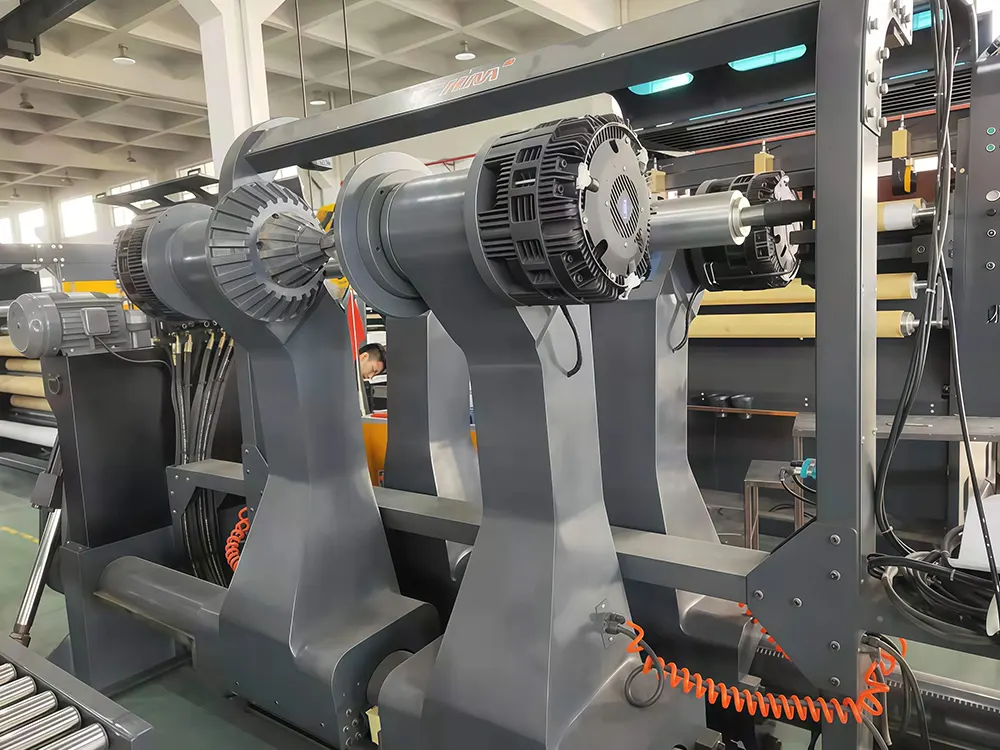

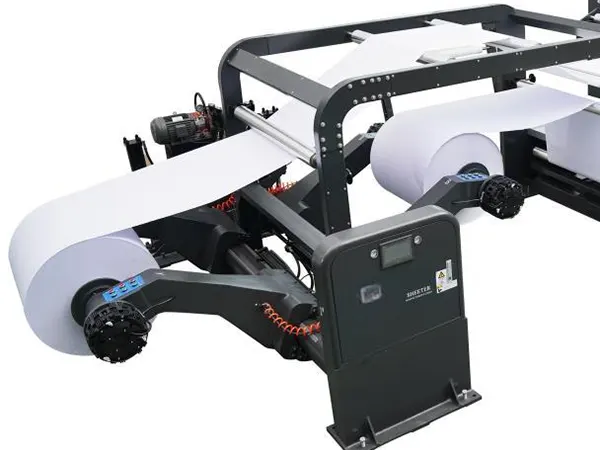

Unwind stand (with two sets of tracks and trolleys)

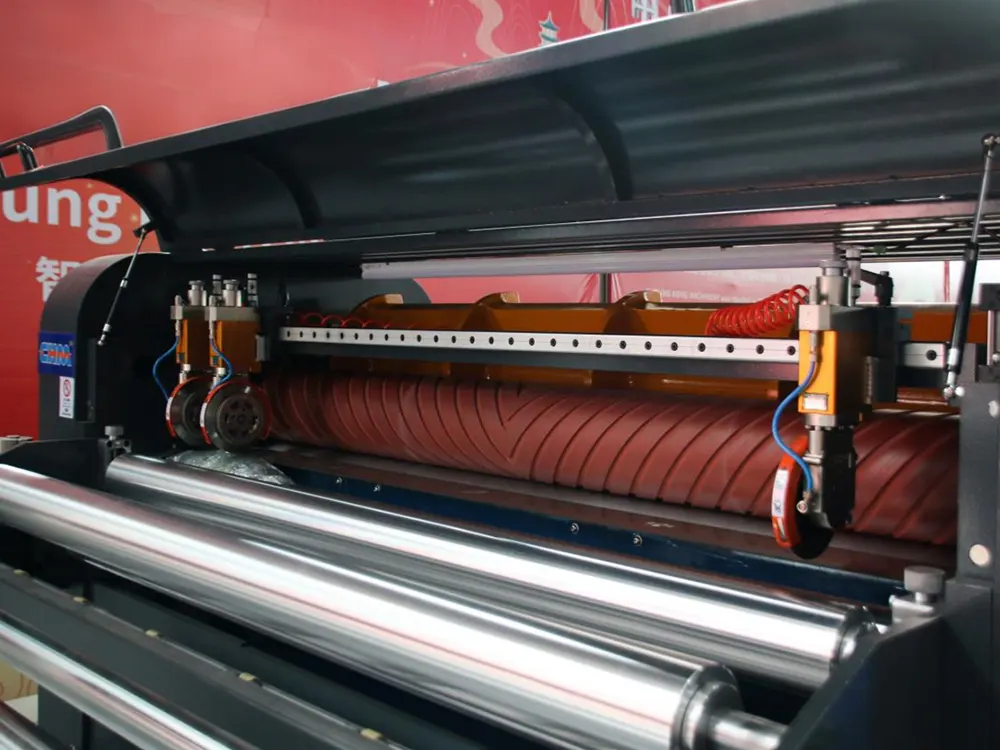

Slitting and edge trim collection system (pneumatic slitter knives)

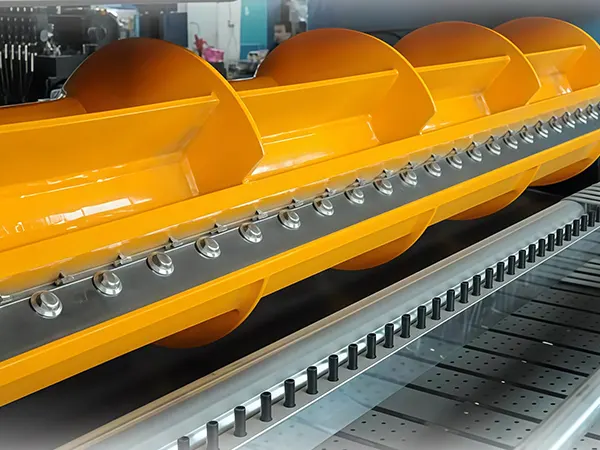

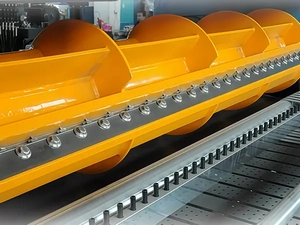

Precision dual rotary sheet cutter

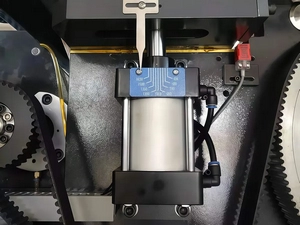

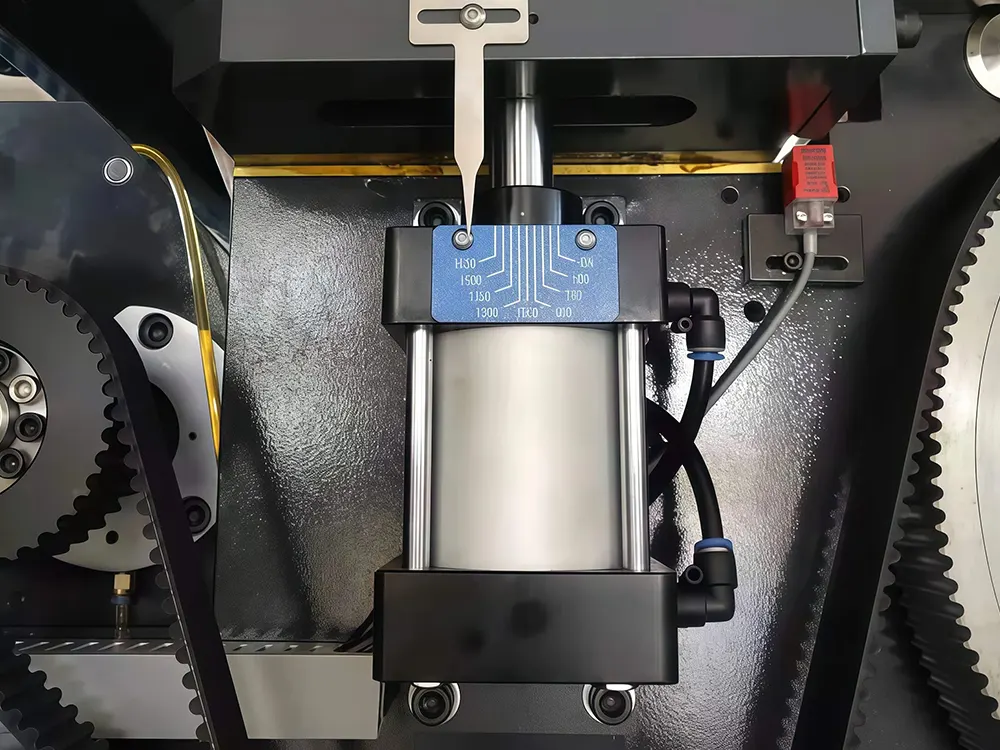

Automatic squareness adjustment system

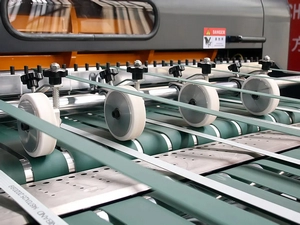

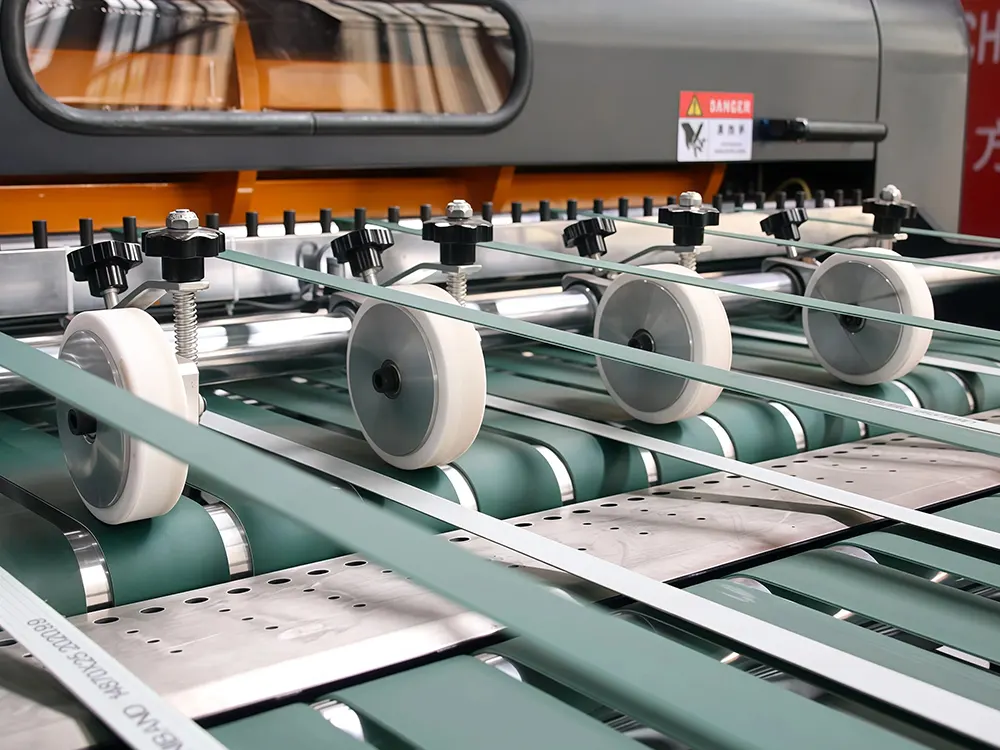

Static elimination system
Sheet conveyor

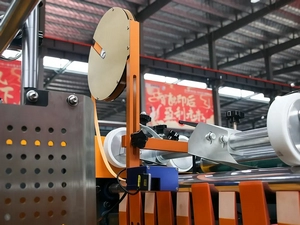

Automatic counting and tab insertion system

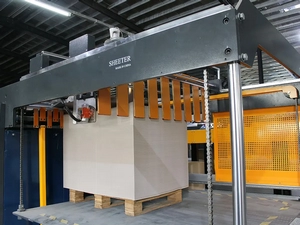

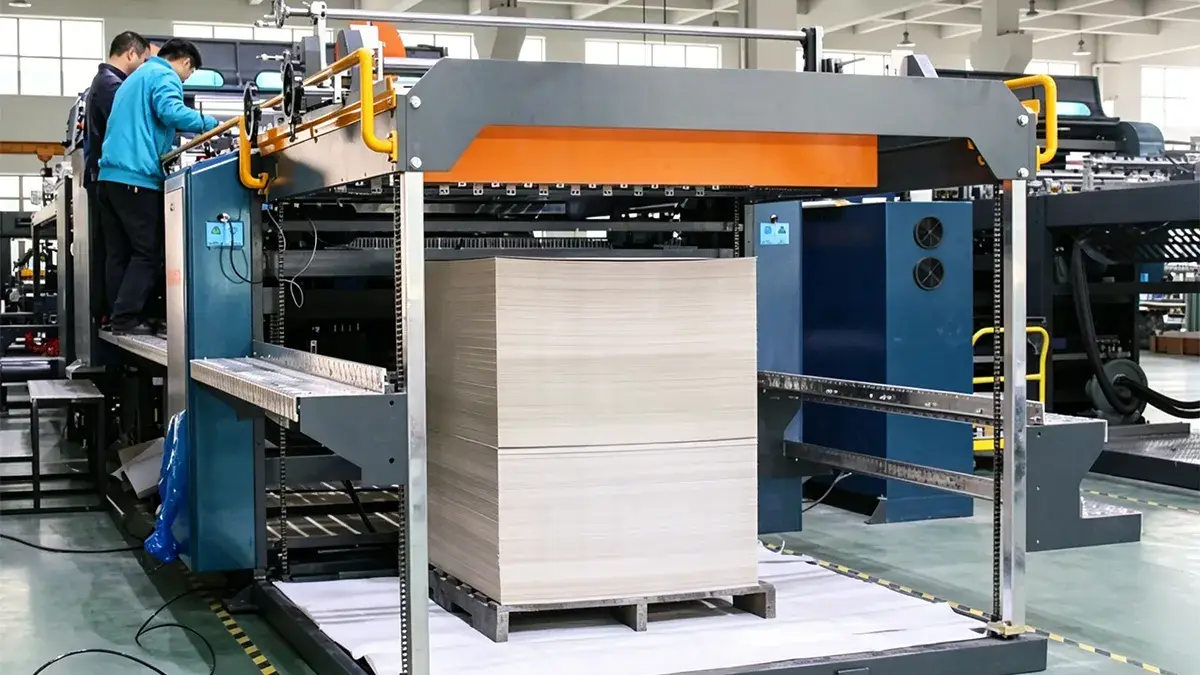

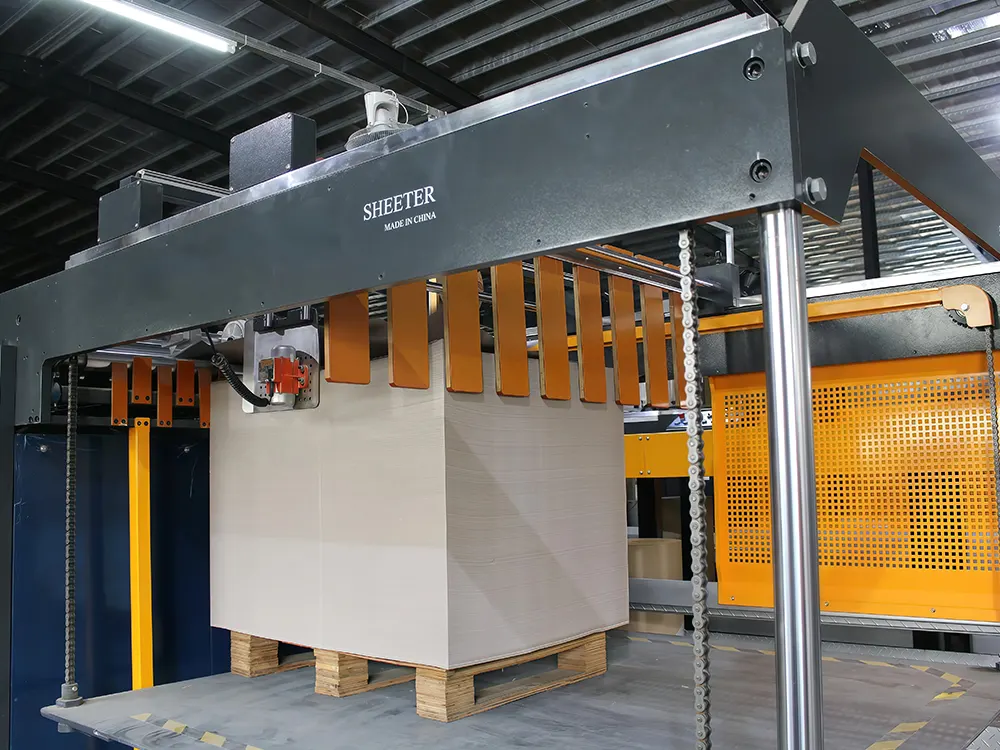

Automatic sheet jogger

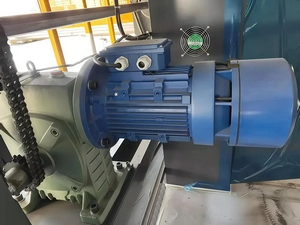

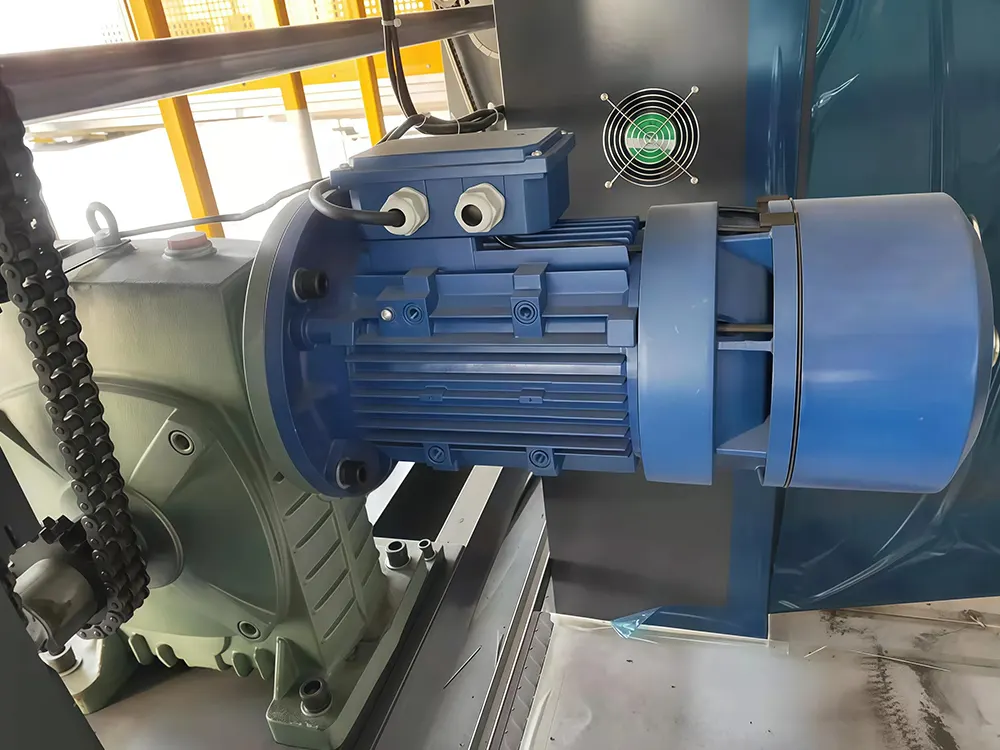

Drive system
Automatic web tension control system
