Cold Foil Transfer Machine, Holographic Cold Transfer Machine
The GLT series cold foil transfer machine gives packaging printers a flexible way to add metallic, holographic, and high-value decorative effects without heat-based foil stamping. By using special UV adhesive and pressure, the machine transfers metallic foil onto selected graphic areas or full-surface designs, creating premium gold, silver, holographic, and textured effects on paper and film substrates.

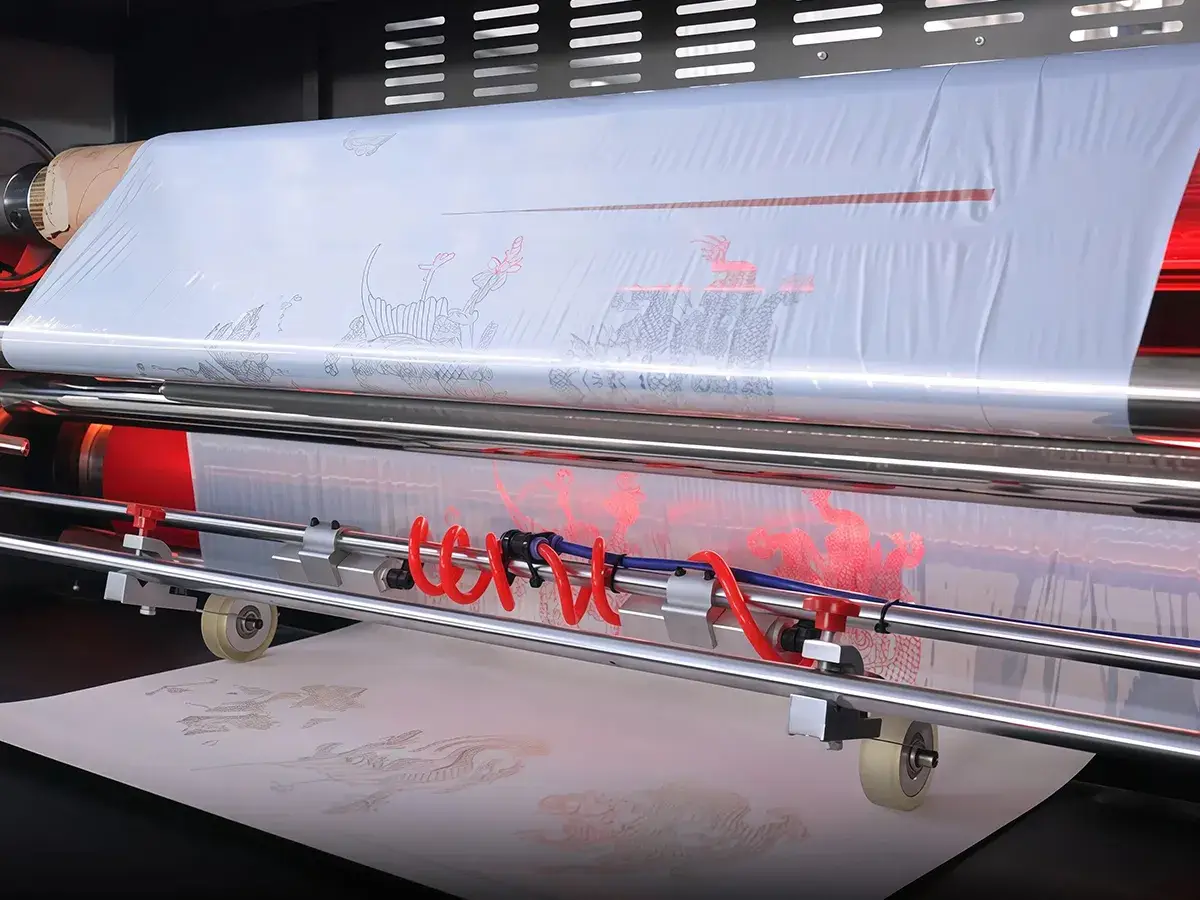

In production, the printing machine first applies special UV adhesive to the substrate according to the required graphic pattern. The glued substrate then passes through the laminating roller, where pressure bonds the cold foil to the printed surface. This cold foil transfer machine can be connected with semi-automatic or fully automatic screen printing machines and combined with snowflake wrinkle effect units, UV curing machines, automatic feeders, and other equipment to build an integrated finishing line.
- Wrinkle Ink Effect
- Snowflake Ink Effect
- UV Varnishing
- Cold Foil Transfer
- Multi-Function Inline Automated Production
It is suitable for multi-process, high-value surface decoration printing. It is especially used for cigarette boxes, wine boxes, cosmetic boxes, pharmaceutical boxes, gift boxes, toys, books, magazines, and printed products made from paper or plastic sheets.
For packaging manufacturers that need stronger shelf appeal, richer decorative effects, and more flexible design possibilities, these cold foil transfer machines support pattern transfer and surface embellishment with a more efficient inline production workflow.
| Model | |||
| Max. Working Width (mm) | 1100 | 1400 | 1500 |
| Min. Working Width (mm) | 350 | 350 | 350 |
| Substrate Weight (GSM) | 157–450 | 157–450 | 157–450 |
| Max. Foil Roll Diameter (mm) | 200 | 200 | 200 |
| Max. Delivery Speed (pcs/h) | 4000 | 4000 | 4000 |
| Max. Cold Foiling Speed (pcs/h) | 1200 | 1200 | 1200 |
| Total Power (kW) | 14.5 | 16 | 16.5 |
| Total Weight (kg) | 700 | 1000 | 1100 |
| Exterior Dimensions L×W×H (mm) | 2000×2100×1460 | 2450×2300×1460 | 2620×2300×1460 |
- Adjustable-Height Sheet Bridge System: The adjustable-height sheet bridge can match different upstream equipment heights, making this cold foil transfer equipment easier to integrate into existing production lines. This reduces line modification costs and improves overall production flexibility.
- High-Rigidity Machine Structure: Key structural parts are precision-machined from 25 mm thick steel plates, giving the machine strong rigidity, stable operation, and low vibration. This structure supports long-term accuracy and reliable performance during continuous production.
- 3-Inch Core Foil Roll Compatibility: This cold foil transfer machine supports 3-inch core foil rolls and is compatible with multiple cold foil materials as well as some hot stamping foils. This gives printers more material options and reduces restrictions when sourcing consumables.
