Automatic Sheet Stacker (Pile Height 110mm)

Watch Video

For GSP and GST series automatic cylinder screen printing machines, the GSZ(Q)/GSZ(A) series automatic sheet stacker provides an efficient sheet collection solution for printed or semi-finished materials. It automatically arranges, stacks, and delivers paper, paperboard, or corrugated sheets after printing, reducing manual collection work and keeping the output area more organized.

By replacing slow manual sheet receiving with automatic stacking, the GSZ(Q)/GSZ(A) series automatic sheet stacker improves production continuity, reduces labor intensity, and prevents uneven piles that can affect later handling or finishing. It is a practical supporting unit for printing lines that need cleaner sheet output, smoother workflow, and more stable post-printing material management.

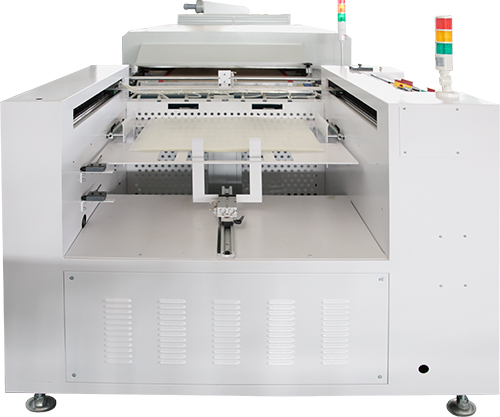

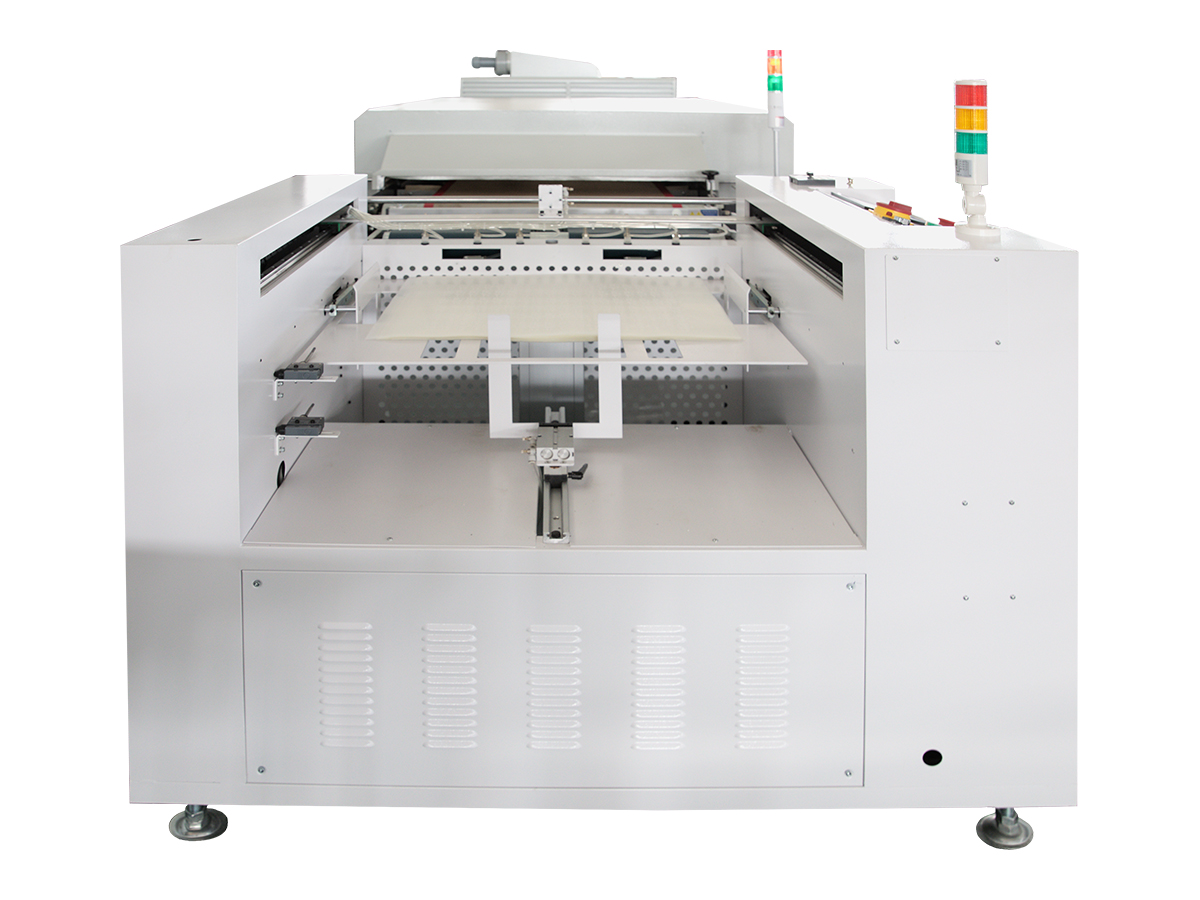

GSZ(Q)700 Automatic Sheet Stacker
GSZ(Q)700 Automatic Sheet Stacker
Model GSZ(Q)700
Max. Sheet Size (mm) 700 × 500
Min. Sheet Size (mm) 480 × 430
Max. Pile Height (mm) 110
Total Power (kW) 2
Total Weight (kg) 800
Exterior Dimensions L×W×H (mm) 2000 × 1860 × 1170

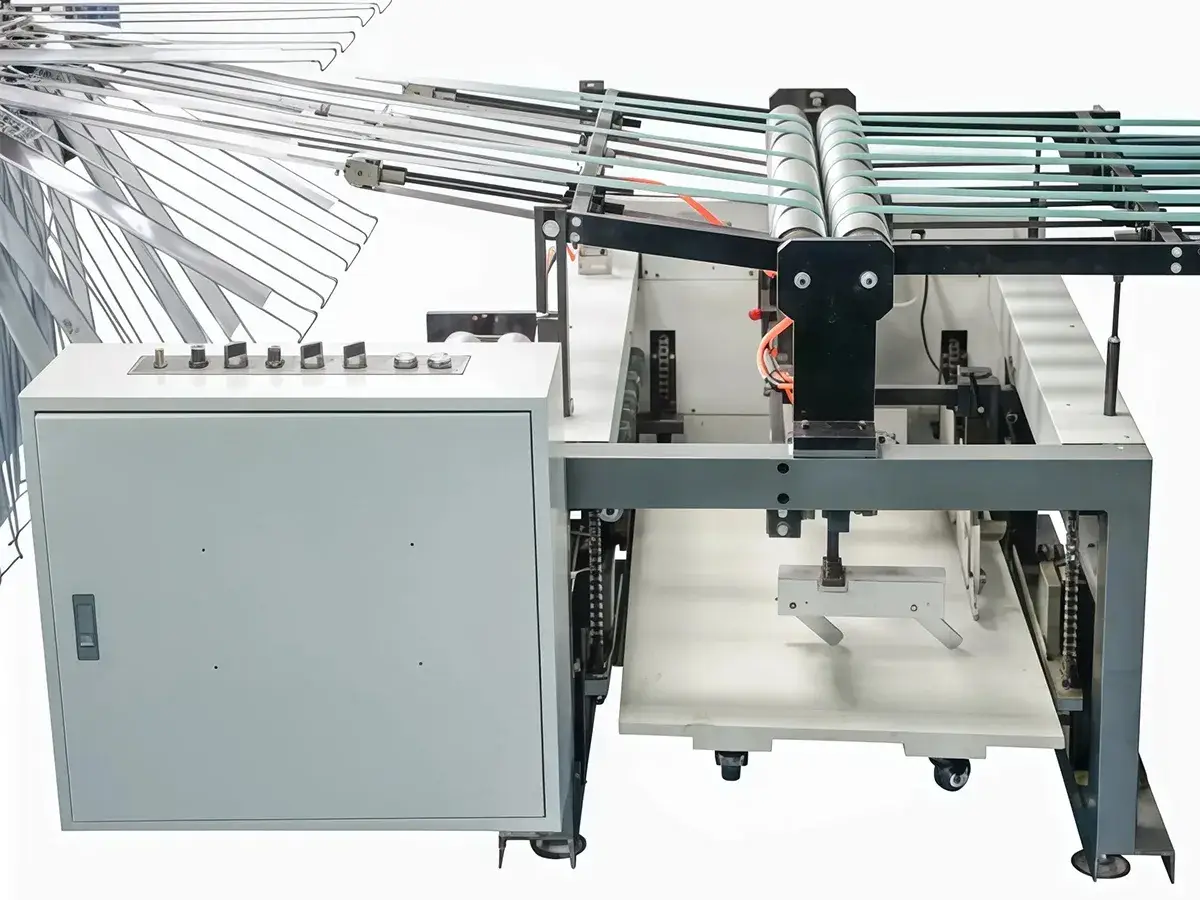

GSZ(A)1020 Automatic Sheet Stacker
GSZ(A)1020 Automatic Sheet Stacker
Model GSZ(A)1020
Max. Sheet Size (mm) 1020 × 765
Min. Sheet Size (mm) 560 × 350
Max. Pile Height (mm) 110
Total Power (kW) 0.97
Total Weight (kg) 400
Exterior Dimensions L×W×H (mm) 2380 × 1363 × 980
